Fused Deposition Modeling (FDM) is a 3D printing process that involves the creation of a physical object by depositing successive layers of a thermoplastic material. The FDM method provides a cost-effective and versatile way to create complex shapes and structures that would be difficult or impossible to produce through traditional manufacturing techniques.
In this article, we will cover all aspects of the Fused Deposition Modeling (FDM) process, from its definition and benefits to the materials used and applications in various industries. We will also provide tips for successful FDM prints and troubleshoot common FDM printing problems.
I. What is Fused Deposition Modeling (FDM) Process?
A. Definition

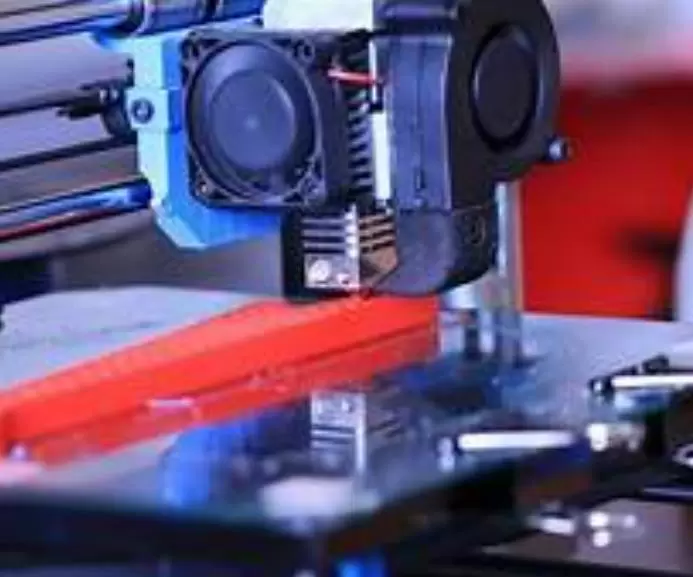

Fused Deposition Modeling (FDM) is a type of 3D printing technology that involves the creation of a physical object by depositing successive layers of a thermoplastic material. The process begins with a 3D model created in computer-aided design (CAD) software, which is then sliced into individual layers by specialized software. The printer then reads the sliced file and uses a heated extruder to melt and deposit the thermoplastic material layer by layer, until the object is finished.
B. Brief History of FDM Process
Fused Deposition Modeling (FDM) was developed in the late 1980s by Scott Crump, the co-founder of Stratasys Ltd. The first FDM 3D printer was commercialized by Stratasys in 1992 under the name of Fused Deposition Modeling. Since then, FDM has become one of the most popular 3D printing technologies because of its affordability, versatility, and ease of use.
C. Advantages of FDM over Traditional Manufacturing Processes
FDM provides numerous benefits over traditional manufacturing processes, including:
- Lower cost: FDM is significantly cheaper than traditional manufacturing techniques, such as injection molding or CNC machining, especially for small production runs or single parts.
- Rapid prototyping: FDM enables designers and engineers to quickly create and test prototypes before committing to mass production.
- Better design flexibility: FDM allows for the creation of complex geometries and hollow structures that would be difficult or impossible to produce with traditional manufacturing techniques.
- Reduced waste and energy consumption: FDM generates less waste and requires less energy than traditional manufacturing techniques, making it a more environmentally friendly option.
II. Benefits of Using FDM Method in 3D Printing
A. Cost-Effective
FDM is one of the most cost-effective 3D printing techniques available today. The price of FDM printers has decreased significantly over the past few years, making them accessible to not only businesses but also hobbyists and home users. Additionally, FDM requires less material than other 3D printing techniques, making it an affordable choice for small production runs or single parts.
B. Rapid Prototyping
FDM enables designers and engineers to quickly create and test prototypes, allowing for a faster development cycle and increased innovation. With FDM, prototypes can be produced in-house and on-demand, reducing the need for outsourcing and improving production efficiency.
C. Better Design Flexibility
FDM allows for the creation of complex geometries and hollow structures that would be difficult or impossible to produce with traditional manufacturing techniques. With FDM, designs can be modified and iterated upon quickly, without incurring high tooling costs or lengthy lead times. This allows for a more agile design process, which can lead to more innovative and successful products.
D. Reduced Waste and Energy Consumption
Because FDM only uses the amount of material needed to create the object, it generates less waste than traditional manufacturing techniques. Additionally, FDM requires less energy than traditional manufacturing, making it a greener and more sustainable option.
III. Materials Used in FDM Method
A. Thermoplastics
Thermoplastics are the most commonly used materials in FDM 3D printing. They can be easily melted and shaped, and have excellent durability and strength properties. Some popular thermoplastics used in FDM printing include:
- PLA (Polylactic Acid): A biodegradable thermoplastic that is easy to use and produces high-quality prints.
- ABS (Acrylonitrile Butadiene Styrene): A versatile thermoplastic that is strong, durable, and has good heat resistance.
- PETG (Polyethylene Terephthalate Glycol): A tough and flexible thermoplastic that is resistant to chemicals and UV light.
B. Composite Materials
Composite materials are made up of a combination of two or more materials, resulting in unique properties that cannot be achieved with a single material. FDM printers can use composite filaments, which contain materials such as metal, wood, or carbon fiber, to produce parts with enhanced strength, stiffness, and conductivity properties.
C. Specialty Materials
Specialty materials are designed for specific applications that require unique properties, such as flexibility, transparency, or electrical conductivity. FDM printers can use specialty filaments, such as TPU (Thermoplastic Polyurethane) or PVA (Polyvinyl Alcohol), to produce parts with specific properties that meet the needs of the application.
IV. How FDM Compares to Other 3D Printing Technologies
A. FDM vs. Stereolithography (SLA)
Stereolithography (SLA) is another common 3D printing technique that uses a liquid resin that is cured by a UV laser to create objects layer by layer. SLA produces high-quality, detailed parts with a smooth surface finish, but it is more expensive and requires more post-processing than FDM printing.
B. FDM vs. Selective Laser Sintering (SLS)
Selective Laser Sintering (SLS) is a 3D printing technique that uses a high-powered laser to melt and fuse together powdered materials, such as nylon or metal, to create an object. SLS produces high-strength parts with high accuracy, but it is more expensive and requires more post-processing than FDM printing.
C. FDM vs. Digital Light Processing (DLP)
Digital Light Processing (DLP) is a 3D printing technique that uses a projector to project an image of each layer onto a liquid resin, which is then cured by a UV light. DLP produces high-quality, detailed parts with a smooth surface finish, but it is more expensive and requires more post-processing than FDM printing.
V. Tips for Successful FDM Printing
A. Choosing the Right Filament
Choosing the right filament is crucial for achieving a successful FDM print. Factors to consider include the material’s strength, flexibility, temperature resistance, and printability. It’s also important to consider the printer’s specifications, such as print bed size and nozzle diameter.
B. Proper Printer Setup
Proper printer setup is essential for achieving a successful FDM print. This includes ensuring the printer is level, the print bed is clean and flat, and the extruder is properly calibrated. It’s also important to ensure that the printer is using the correct printing settings for the chosen filament.
C. Correct Printing Settings
Adjusting the printing settings, such as temperature, speed, and layer height, is essential for achieving a successful FDM print. These settings will vary depending on the filament being used and the printer’s specifications. It’s important to experiment with different settings to find the optimal combination for each print.
D. Post-Processing Techniques
Post-processing techniques, such as sanding and painting, can improve the look and feel of FDM prints. Additionally, printing support structures can be removed using pliers or wire cutters, and the print can be cleaned using a solvent or a wire brush.
VI. Common FDM Printing Problems and How to Fix Them
A. Warping and Cracking
Warping and cracking can occur when the printed object is exposed to temperature changes or uneven cooling. To prevent warping and cracking, ensure that the print bed is level and that the temperature is set correctly for the chosen filament. Additionally, add a brim or a raft to increase adhesion to the print bed.
B. Layer Shifting
Layer shifting can occur when the printer’s motor skips steps, causing the layer to shift slightly. To prevent layer shifting, ensure that the motor belts are tight and that the printer’s frame is stable. Additionally, reducing the print speed can help reduce the likelihood of layer shifting.
C. Clogged Extruder
A clogged extruder can occur when the filament gets stuck in the nozzle, preventing the printer from extruding material. To prevent a clogged extruder, ensure that the filament is properly loaded and that the printer’s nozzle is clean. Additionally, reducing the print temperature can help prevent the filament from getting stuck in the nozzle.
D. Poor Adhesion
Poor adhesion can occur when the printed object does not stick to the print bed. To improve adhesion, ensure that the print bed is clean and that the filament is adhering properly. Additionally, adding a brim or a raft can improve adhesion and prevent the object from moving during printing.
VII. Applications of FDM in Various Industries
A. Aerospace
FDM is used in the aerospace industry to create structural components and prototypes for spacecraft and aircraft. FDM allows for the creation of lightweight, durable, and high-strength parts that meet the strict requirements of the aerospace industry.
B. Medical and Dental
FDM is used in the medical and dental industries to create custom-fitted implants, prosthetics, and models for surgical planning. FDM’s design flexibility and ability to use biocompatible materials make it a valuable tool in the creation of patient-specific solutions.
C. Architecture and Engineering
FDM is used in architecture and engineering to create detailed models and prototypes of buildings, bridges, and other infrastructure projects. FDM’s ability to create complex geometries and hollow structures makes it ideal for creating detailed and accurate models.
D. Education and Research
FDM is used in education and research to teach students and researchers about 3D printing technology and its applications. FDM’s affordability and ease of use make it accessible to students and researchers at all levels.
VIII. Future of FDM Technology
A. Advancements in Material Science
Advancements in material science are continually expanding the capabilities of FDM technology. New materials, such as conductive and magnetic filaments, are being developed for use in FDM printing, opening up new applications and possibilities.
B. Improved Machine Performance
FDM printer manufacturers are continually improving their machines to increase accuracy, speed, and reliability. New features, such as dual-extrusion and auto-leveling, are becoming more common, making FDM printing even more accessible and versatile.
C. Hybrid Manufacturing Techniques
Hybrid manufacturing techniques, which combine multiple manufacturing processes, are becoming more popular, and are utilizing FDM technology. Hybrid manufacturing, such as the use of FDM and CNC machining, provides the benefits of both manufacturing techniques, resulting in a more efficient and cost-effective production process.
Conclusion
Fused Deposition Modeling (FDM) is a versatile and cost-effective 3D printing technology that is widely used in various industries. The FDM process involves the deposition of successive layers of thermoplastic material, resulting in the creation of complex structures and shapes that would be difficult or impossible to produce using traditional manufacturing techniques. With the continued advancements in FDM technology and material science, the applications of FDM printing are continually expanding, providing a valuable tool for businesses, researchers, and hobbyists alike.
